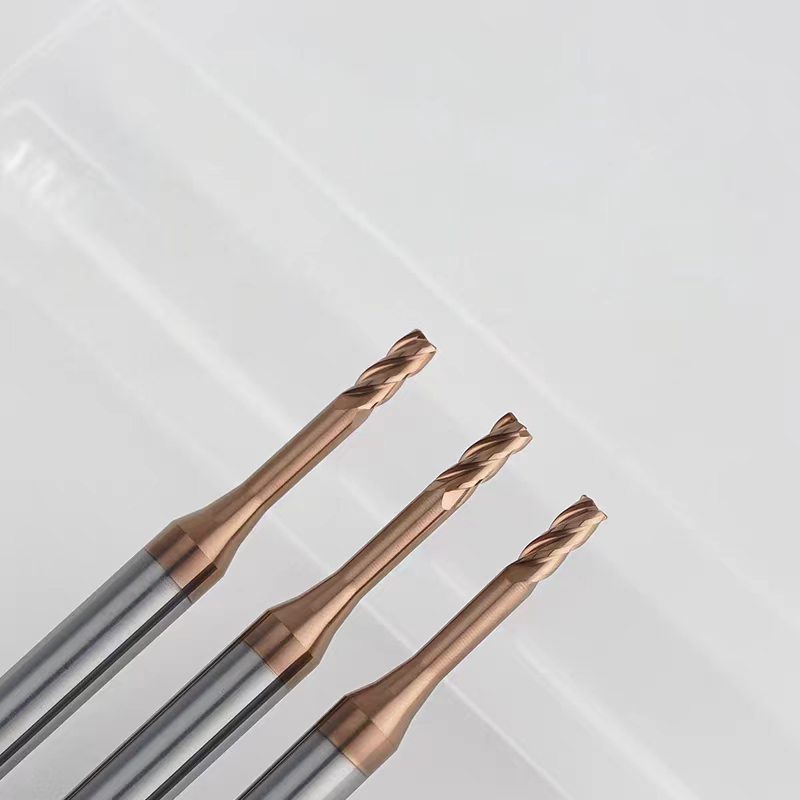

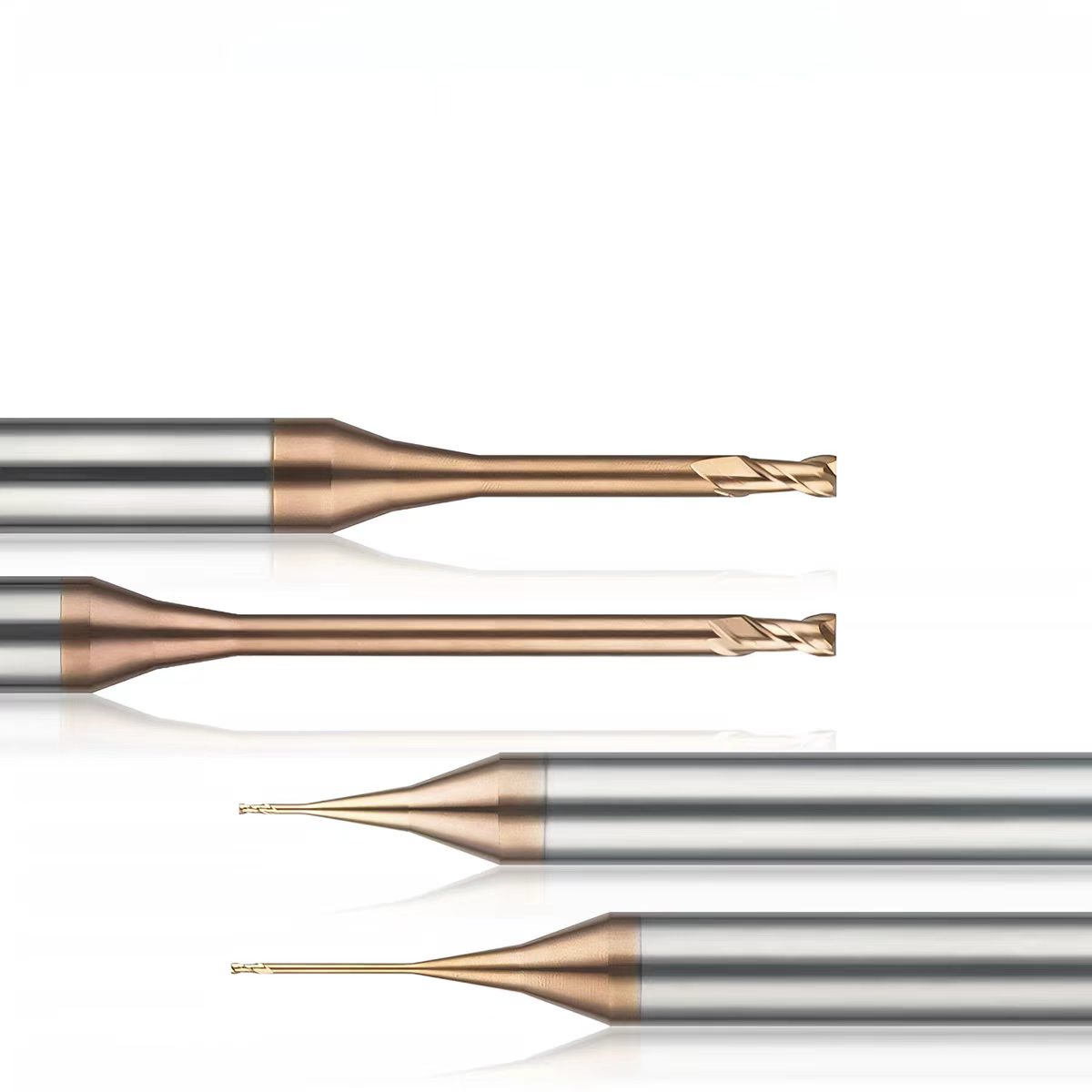

Long Neck End Mills 60HRC Balzers Coating
Long-neck end mills are becoming increasingly widely used in practical machining applications; this end mill manufactured by GCT is suitable for machining materials such as stainless steel, cast iron, mold steel, and hardened steel.
Name: Long neck flat end mills
Grain size: 0.4um
Material: Solid carbide
Coating: Balzers
Cutting edge passivation treatment, smooth and burr-free, negative rake angle design, impact-resistant and wear-resistant.
Products Categories
Get A Free Quote
 |
||||||
| Size | Diameter | L1 | L2 | d | Shank Diameter | Total Length |
| 0.2*4D*50L-L1 | 0.2 | 0.3 | 1 | 0.17 | 4 | 50 |
| 0.2*4D*50L-L2 | 2 | |||||
| 0.3*4D*50L-L1 | 0.3 | 0.45 | 1 | 0.27 | 4 | 50 |
| 0.3*4D*50L-L2 | 2 | |||||
| 0.3*4D*50L-L3 | 3 | |||||
| 0.3*4D*50L-L4 | 4 | |||||
| 0.4*4D*50L-L2 | 0.4 | 0.6 | 2 | 0.37 | 4 | 50 |
| 0.4*4D*50L-L3 | 3 | |||||
| 0.4*4D*50L-L4 | 4 | |||||
| 0.4*4D*50L-L6 | 6 | |||||
| 0.5*4D*50L-L2 | 0.5 | 0.75 | 2 | 0.46 | 4 | 50 |
| 0.5*4D*50L-L3 | 3 | |||||
| 0.5*4D*50L-L4 | 4 | |||||
| 0.5*4D*50L-L5 | 5 | |||||
| 0.5*4D*50L-L6 | 6 | |||||
| 0.5*4D*50L-L8 | 8 | |||||
| 0.6*4D*50L-L2 | 0.6 | 0.9 | 2 | 0.56 | 4 | 50 |
| 0.6*4D*50L-L3 | 3 | |||||
| 0.6*4D*50L-L4 | 4 | |||||
| 0.6*4D*50L-L5 | 5 | |||||
| 0.6*4D*50L-L6 | 6 | |||||
| 0.6*4D*50L-L8 | 8 | |||||
| 0.7*4D*50L-L3 | 0.7 | 1.05 | 3.0 | 0.66 | 4.0 | 50 |
| 0.7*4D*50L-L4 | 4.0 | |||||
| 0.7*4D*50L-L5 | 5.0 | |||||
| 0.7*4D*50L-L6 | 6.0 | |||||
| 0.7*4D*50L-L8 | 8.0 | |||||
| 0.8*4D*50L-L3 | 0.8 | 1.2 | 3.0 | 0.76 | 4.0 | 50 |
| 0.8*4D*50L-L4 | 4.0 | |||||
| 0.8*4D*50L-L5 | 5.0 | |||||
| 0.8*4D*50L-L6 | 6.0 | |||||
| 0.8*4D*50L-L8 | 8.0 | |||||
| 0.8*4D*50L-L10 | 10.0 | |||||
| 1.0*4D*50L-L5 | 1.0 | 1.5 | 5.0 | 0.95 | 4.0 | 50 |
| 1.0*4D*50L-L6 | 6.0 | |||||
| 1.0*4D*50L-L8 | 8.0 | |||||
| 1.0*4D*50L-L10 | 10.0 | |||||
| 1.0*4D*50L-L12 | 12.0 | |||||
| 1.0*4D*50L-L14 | 14.0 | |||||
| 1.0*4D*50L-L16 | 16.0 | |||||
| 1.0*4D*50L-L20 | 20.0 | |||||
| 1.5*4D*50L-L6 | 1.5 | 2.3 | 6.0 | 1.44 | 4.0 | 50 |
| 1.5*4D*50L-L8 | 8.0 | |||||
| 1.5*4D*50L-L10 | 10.0 | |||||
| 1.5*4D*50L-L12 | 12.0 | |||||
| 1.5*4D*50L-L14 | 14.0 | |||||
| 1.5*4D*50L-L16 | 16.0 | |||||
| 1.5*4D*50L-L20 | 20.0 | |||||
| 2.0*4D*50L-L8 | 2.0 | 3 | 8.0 | 1.94 | 4 | 50 |
| 2.0*4D*50L-L10 | 10.0 | |||||
| 2.0*4D*50L-L12 | 12.0 | |||||
| 2.0*4D*50L-L16 | 16.0 | |||||
| 2.0*4D*50L-L14 | 14.0 | |||||
| 2.0*4D*50L-L20 | 20.0 | |||||
| 2.5*4D*50L-L12 | 2.5 | 3.8 | 12.0 | 2.4 | 4 | 50 |
| 2.5*4D*50L-L16 | 16.0 | |||||
| 2.5*4D*50L-L20 | 20.0 | |||||
| 3.0*4D*50L-L12 | 3.0 | 4.5 | 12.0 | 2.9 | 4 | 50 |
| 3.0*4D*50L-L16 | 16.0 | |||||
| 3.0*4D*50L-L20 | 20.0 | |||||
