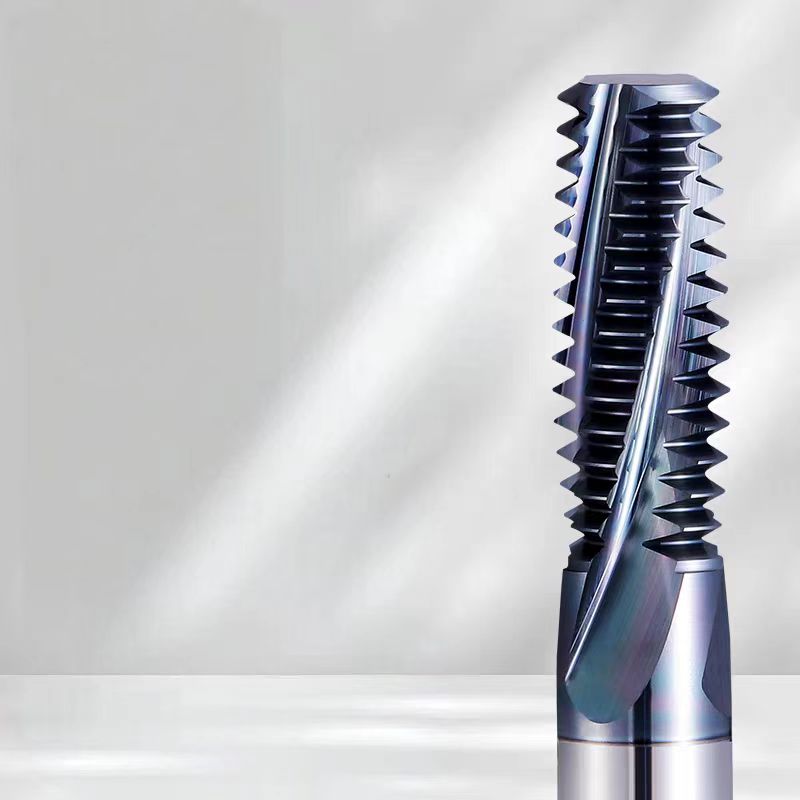

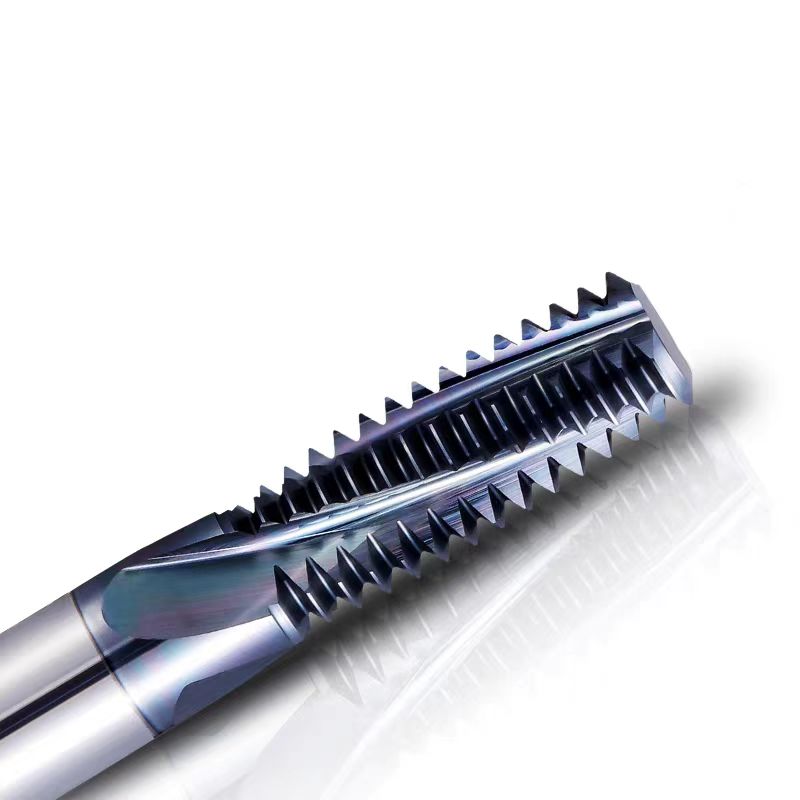

ISO Carbide Full Flutes Thread Milling Cutters
ISO carbide full-thread end mills are widely used in modern machining applications. GCT uses high-quality base materials and coatings to ensure excellent tool life and machining efficiency.
Material: Hard alloy
Brand: GCT
Machining materials: Carbon steel, alloy steel, pre-hardened steel (~48HRC), cast iron, stainless steel, titanium alloy
In stock: Yes
OEM: Yes
Customization: Supported
Products Categories
Get A Free Quote
 |
||

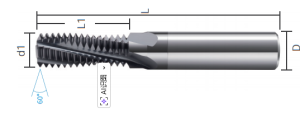

| CODE | Model | d1*L1*D*L |
| ISO F0.4 1.55040450 D | M2*0.4 | 1.55d1*4L1*D4*50L |
| ISO F0.45 2.0050450 D | M2.5*0.45 | 2.0d1*5.0L1*D4*50L |
| ISO F0.5 2.4060450 D | M3*0.5 | 2.4d1*6.0L1*D4*50L |
| ISO F0.7 3.15080450 D | M4*0.7 | 3.15d1*8.0L1*D4*50L |
| ISO F0.5 4.0100450 D | M5*0.5 | 4.0d1*10L1*4D*50L |
| ISO F0.75 4.0100450 D | M5*0.75 | 4.0d1*10L1*4D*50L |
| ISO F0.8 4.0100450 D | M5*0.8 | 4.0d1*10L1*4D*50L |
| ISO F0.75 4.8120660 D | M6*0.75 | 4.8d1*12L1*6D*60L |
| ISO F1.0 4.8120660 D | M6*1.0 | 4.8d1*12L1*6D*60L |
| ISO F0.5 6.0160660 D | M8*0.5 | 6.0d1*16L1*6D*60L |
| ISO F0.75 6.0160660 D | M8*0.75 | 6.0d1*16L1*6D*60L |
| ISO F1.0 6.0160660 D | M8*1.0 | 6.0d1*16L1*6D*60L |
| ISO F1.25 6.0160660 D | M8*1.25 | 6.0d1*16L1*6D*60L |
| ISO F0.5 8.0200860 D | M10*0.5 | 8.0d1*20L1*8D*60L |
| ISO F0.75 8.0200860 D | M10*0.75 | 8.0d1*20L1*8D*60L |
| ISO F1.0 8.0200860 D | M10*1.0 | 8.0d1*20L1*8D*60L |
| ISO F1.25 8.0200860 D | M10*1.25 | 8.0d1*20L1*8D*60L |
| ISO F1.5 8.0200860 D | M10*1.5 | 8.0d1*20L1*8D*60L |
| ISO F0.5 10241075 D | M12*0.5 | 10d1*24L1*10D*75L |
| ISO F0.75 10241075 D | M12*0.75 | 10d1*24L1*10D*75L |
| ISO F1.0 10241075 D | M12*1.0 | 10d1*24L1*10D*75L |
| ISO F1.25 10241075 D | M12*1.25 | 10d1*24L1*10D*75L |
| ISO F1.5 10241075 D | M12*1.5 | 10d1*24L1*10D*75L |
| ISO F1.75 10241075 D | M12*1.75 | 10d1*24L1*10D*75L |
| ISO F1.0 12281275 D | M14*1.0 | 12d1*28L1*12D*75L |
| ISO F1.5 12281275 D | M14*1.5 | 12d1*28L1*12D*75L |
| ISO F2.0 11.6281275 D | M14*2.0 | 11.6d1*28L1*12D*75L |
| ISO F1.5 143214100 D | M16*1.5 | 14d1*32L1*14D*100L |
| ISO F2.0 133214100 D | M16*2.0 | 13d1*32L1*14D*100L |
| ISO F2.5 14.83816100 D | M18*2.5 | 14.8d1*38L1*16D*100L |
| ISO F1.0 163816100 D | M20*1.0 | 16d1*38L1*16D*100L |
| ISO F1.5 163816100 D | M20*1.5 | 16d1*38L1*16D*100L |
| ISO F2.5 164216100 D | M20*2.5 | 16d1*42L1*16D*100L |
| ISO F3.0 164216100 D | M24*3.0 | 16d1*42L1*16D*100L |
