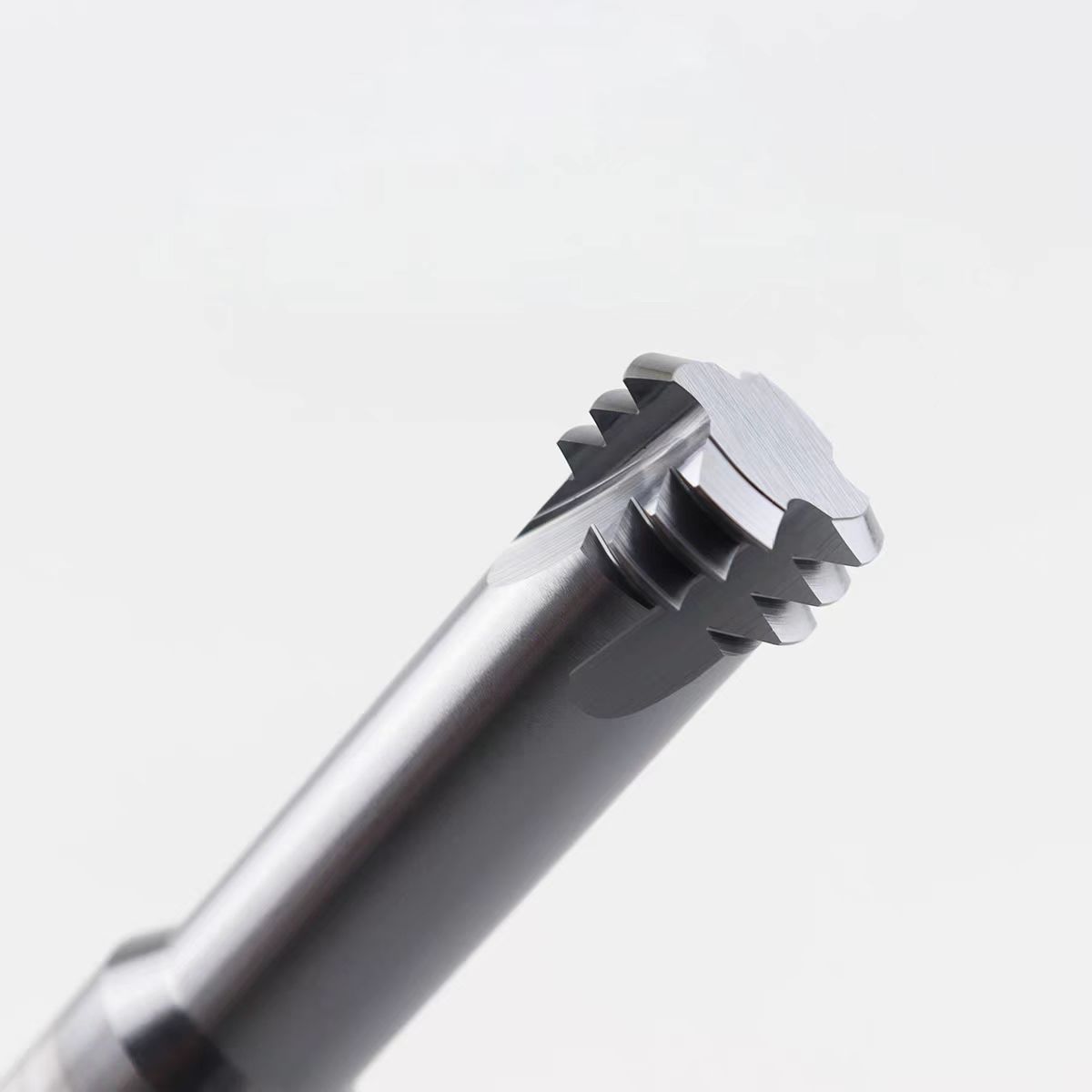

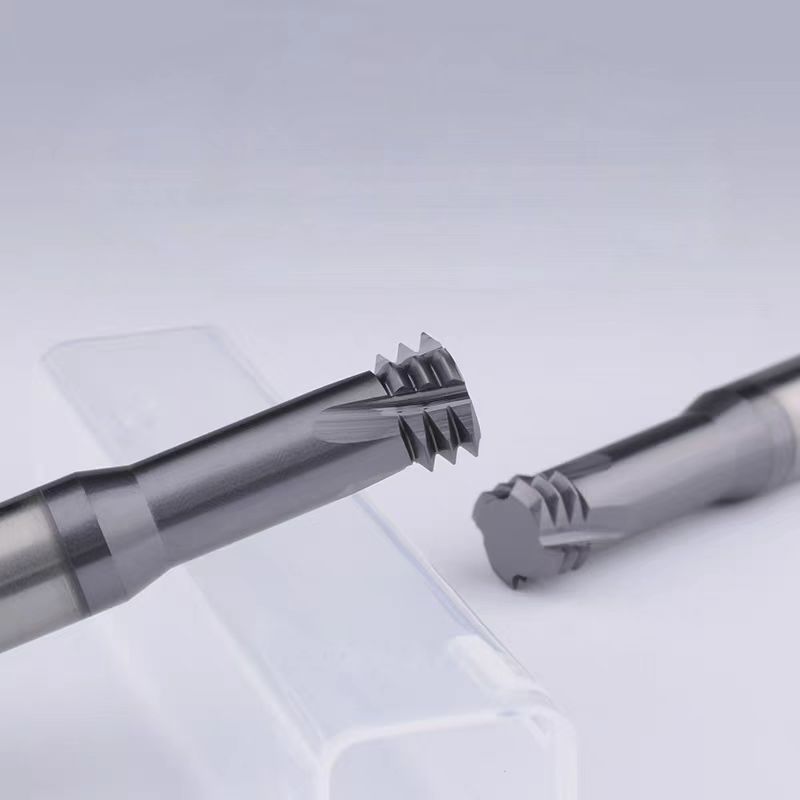

UNC 3F Carbide Thread Milling Cutters
GCT’s 3F thread end mills are professionally designed for producing US standard threads. Their superior base material and coating give them excellent performance.
Suitable materials: Carbon steel, alloy steel, pre-hardened steel (~48HRC), cast iron, stainless steel, titanium alloys, etc.
Material: Carbide
Model: American Standard Thread – 3F
In Stock: Yes
OEM: Yes
Customization: Supported
Products Categories
Get A Free Quote
| Code | Size | d1*L1*D*L |  |
| UNC T64 1.40400450 A | NO.1-64 | 1.4d1*4.0L1*4D*50L | |
| UNC T56 1.650500450 A | NO.2-56 | 1.65d1*5.0L1*4D*50L | |
| UNC T48 1.950500450 A | NO.3-48 | 1.95d1*5.0L1*4D*50L | |
| UNC T40 2.150600450 A | NO.4-40 | 2.15d1*6.0L1*4D*50L | |
| UNC T40 2.450720450 A | NO.5-40 | 2.45d1*7.2L1*4D*50L | |
| UNC T32 2.650750450 A | NO.6-32 | 2.65d1*7.5L1*4D*50L | |
| UNC T32 3.20900450 A | NO.8-32 | 3.2d1*9.0L1*4D*50L | |
| UNC T24 3.7100450 A | NO.10-24 | 3.7d1*10L1*4D*50L | |
| UNC T20 4.9120650 A | NO.1/4-20 | 4.9d1*12L1*6D*50L | |

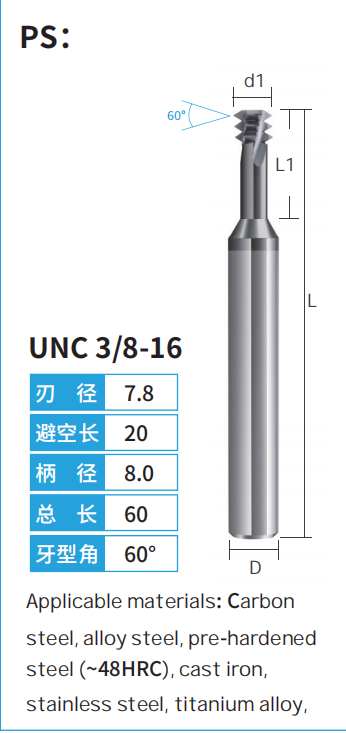

| UNC T16 7.8200860 A | NO.3/8-16 | 7.8d1*20L1*8D*60L | |
| UNC T18 6.4180860 A | NO.5/16-18 | 6.4d1*18L1*8D*60L | |
| UNC T14 9.2241075 A | NO.7/16-14 | 9.2d1*24L1*10D*75L | |
| UNC T13 10241075 A | NO.1/2-13 | 10d1*24L1*10D*75L | |
| UNC T12 12281275 A | NO.9/16-12 | 12d1*28L1*12D*75L |
