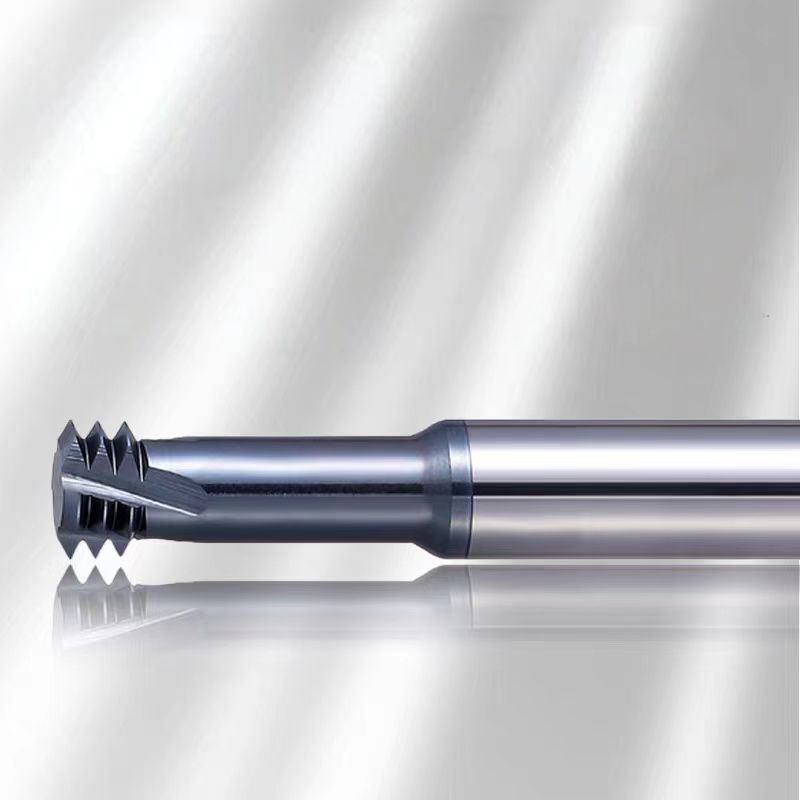

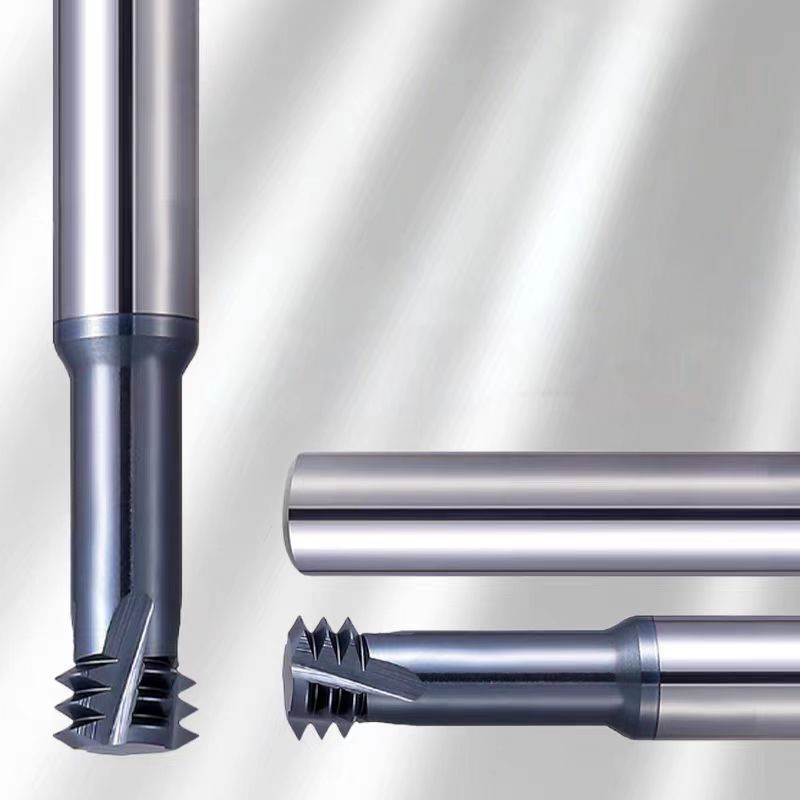

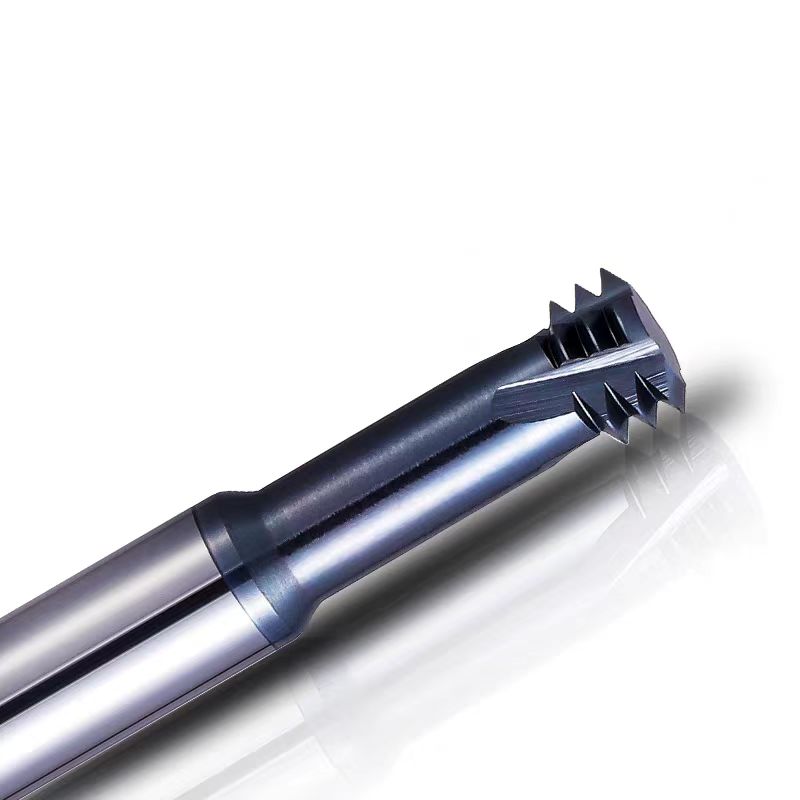

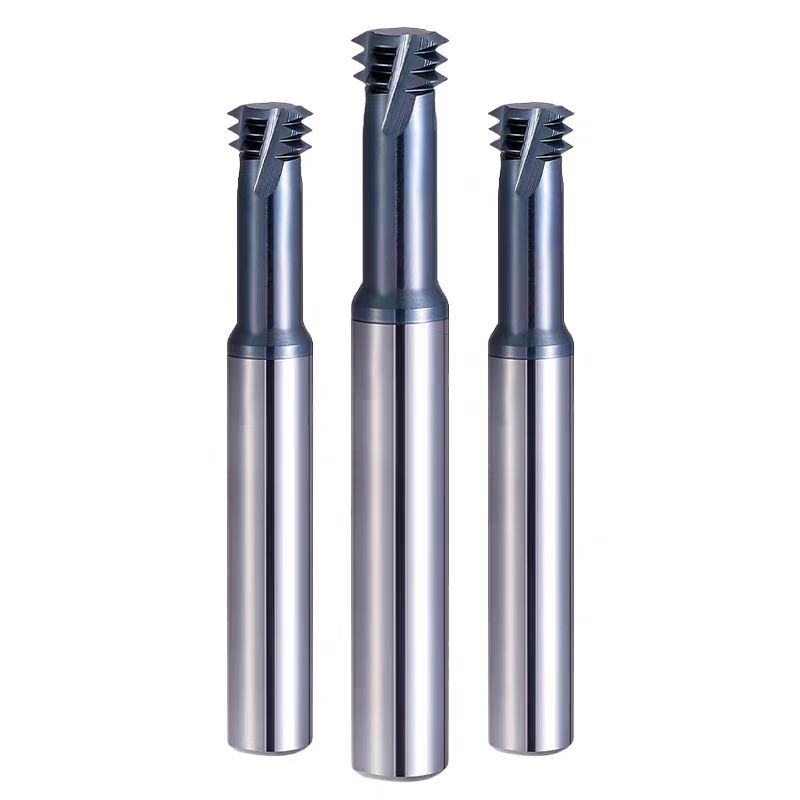

ISO Carbide 3F thread end mill
GCT’s carbide 3F thread end mill is suitable for cutting materials such as carbon steel, alloy steel, pre-hardened steel, stainless steel, and cast iron. It is highly versatile and can meet the needs of many machining scenarios.
Material: Carbide
Size: M1.0-M16.0
OEM: Yes
Customization: Supported
In Stock: Yes
Products Categories
Get A Free Quote

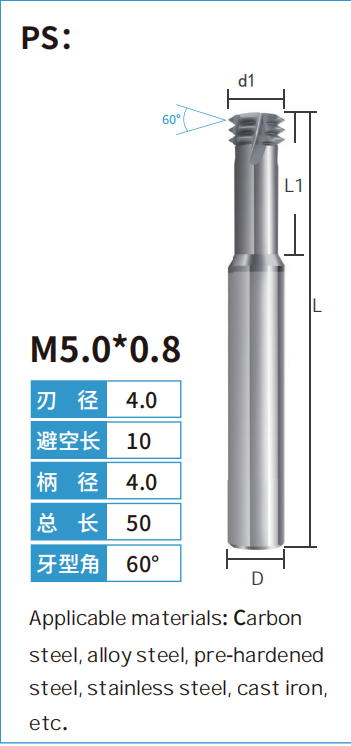

| Code | Size | d1*L1*D*L |  |
| ISO T0.25 0.730200450 D | M1.0*0.25 | 0.73d1*2.0L1*4D*50L | |
| ISO T0.25 0.920240450 D | M1.2*0.25 | 0.92d1*2.4L1*4D*50L | |
| ISO T0.3 1.050280450 D | M1.4*0.3 | 1.05d1*2.8L1*4D*50L | |
| ISO T0.35 1.20320450 D | M1.6*0.35 | 1.2d1*3.2L1*4D*50L | |
| ISO T0.35 1.20320650 D | M1.6*0.35 | 1.2d1*3.2L1*6D*50L | |
| ISO T0.35 1.40360450 D | M1.8*0.35 | 1.4d1*3.6L1*4D*50L | |
| ISO T0.4 1.550400450 D | M2.0*0.4 | 1.55d1*4.0L1*4D*50L | |
| ISO T0.4 1.550400650 D | M2.0*0.4 | 1.55d1*4.0L1*6D*50L | |
| ISO T0.45 1.70500450 D | M2.2*0.45 | 1.7d1*5.0L1*4D*50L | |
| ISO T0.45 2.00500450 D | M2.5*0.45 | 2.0d1*5.0L1*4D*50L | |
| ISO T0.45 2.00500650 D | M2.5*0.45 | 2.0d1*5.0L1*6D*50L | |
| ISO T0.25 2.40600450 D | M3*0.25 | 2.4d1*6.0L1*4D*50L | |
| ISO T0.35 2.40600450 D | M3*0.35 | 2.4d1*6.0L1*4D*50L | |
| ISO T0.5 2.40600450 D | M3.0*0.5 | 2.4d1*6.0L1*4D*50L | |
| ISO T0.5 2.40600650 D | M3.0*0.5 | 2.4d1*6.0L1*6D*50L | |
| ISO T0.6 2.750800450 D | M3.5*0.6 | 2.75d1*8.0L1*4D*50L | |
| ISO T0.7 3.150800450 D | M4.0*0.7 | 3.15d1*8.0L1*4D*50L | |
| ISO T0.7 3.150800650 D | M4.0*0.7 | 3.15d1*8.0L1*6D*50L | |
| ISO T0.75 3.50900450 D | M4.5*0.75 | 3.5d1*9.0L1*4D*50L | |
| ISO T0.8 4.0100450 D | M5.0*0.8 | 4.0d1*10L1*4D*50L | |
| ISO T0.8 4.0100650 D | M5.0*0.8 | 4.0d1*10L1*6D*50L | |
| ISO T0.75 4.8120650 D | M6.0*0.75 | 4.8d1*12L1*6D*50L | |
| ISO T1.0 4.8120650 D | M6.0*1.0 | 4.8d1*12L1*6D*50L | |
| ISO T1.0 6.0160650 D | M8*1.0 | 6.0d1*16L1*6D*50L | |
| ISO T1.25 6.0160650 D | M8*1.25 | 6.0d1*16L1*6D*50L | |
| ISO T1.0 8.0200860 D | M10*1.0 | 8.0d1*20L1*8D*60L | |
| ISO T1.5 8.0200860 D | M10*1.5 | 8.0d1*20L1*8D*60L | |
| ISO T1.0 10241075 D | M12*1.0 | 10d1*24L1*10D*75L | |
| ISO T1.25 10241075 D | M12*1.25 | 10d1*24L1*10D*75L | |
| ISO T1.5 10241075 D | M12*1.5 | 10d1*24L1*10D*75L | |
| ISO T1.75 10241075 D | M12*1.75 | 10d1*24L1*10D*75L | |
| ISO T1.5 12281275 D | M14*1.5 | 12d1*28L1*12D*75L | |
| ISO T2.0 10281075 D | M14*2.0 | 10d1*28L1*10D*75L | |
| ISO T2.0 12321275 D | M16*2.0 | 12d1*32L1*12D*75L | |
| ISO T1.5 12321275 D | M16*1.5 | 14d1*32L1*14D*100L | |
| ISO T2.0 13.53214100 D | M16*2.0 | 13.5d1*32L1*14D*100L |
